Year Title Oxide Anneal.

2012

TIT

Effects of Diffusion of Hydrogen and Oxygen on Electrical Properties of Amorphous Oxide Semiconductor, In-Ga-Zn-O
Thickness 80~100 nm
In:Ga:Zn:O ~1:1:1
Depo. PLD
Temp. RT
Gas O2: 6.7Pa
Pressure 6.7Pa
Power
P.Ann. 350C, 30min
Substrate Thermal oxide 150 nm Si wafer

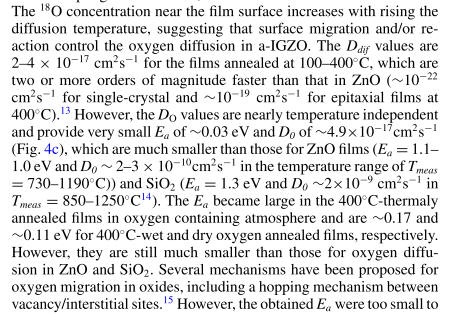

18Odiffusion was performed in a sealed silica tube fully filled by a 98%-18Ogas.The diffusion temperature (Tann) was varied from 100 to 400 C, and the diffusion duration was fixed to 1 hour
